L9663

Automotive PSI5 Transceiver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics L9663 IC INTERFACE SPECIALIZED 32TQFP DigiKey 0 0
$0

L9663 Datasheet (1.25 MB)

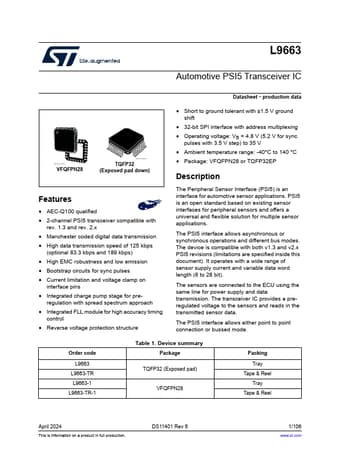

Preview of L9663 PDF Datasheet

Datasheet Details

Part number:

L9663

Manufacturer:

STMicroelectronics ↗

File Size:

1.25 MB

Description:

Automotive psi5 transceiver.

L9663 Features

* AEC-Q100 qualified

* 2-channel PSI5 transceiver compatible with rev. 1.3 and rev. 2.x

* Manchester coded digital data transmission

* High data transmission speed of 125 kbps (optional 83.3 kbps and 189 kbps)

* High EMC robustness and low emission

* Bootstrap circuits for sy

L9663 General Description

The Peripheral Sensor Interface (PSI5) is an interface for automotive sensor applications. PSI5 is an open standard based on existing sensor interfaces for peripheral sensors and offers a universal and flexible solution for multiple sensor applications. The PSI5 interface allows asynchronous or sync.
