L9915

C-terminal alternator voltage regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics L9915B IC REG CTAVR C-TERM MULTIWATT8 DigiKey 0 0
$0

L9915 Datasheet (433.93 KB)

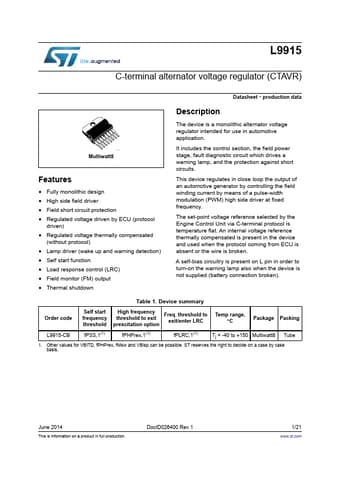

Preview of L9915 PDF Datasheet

Datasheet Details

Part number:

L9915

Manufacturer:

STMicroelectronics ↗

File Size:

433.93 KB

Description:

C-terminal alternator voltage regulator.

L9915 Features

* Fully monolithic design

* High side field driver

* Field short circuit protection

* Regulated voltage driven by ECU (protocol driven)

* Regulated voltage thermally compensated (without protocol)

* Lamp driver (wake up and warning detection)

* Self start function

* L

L9915 General Description

The device is a monolithic alternator voltage regulator intended for use in automotive application. It includes the control section, the field power stage, fault diagnostic circuit which drives a warning lamp, and the protection against short circuits. This device regulates in close loop the output .
