LIS332AR - MEMS motion sensor

General Description

The LIS332AR is a miniaturized low-power 3-axis linear accelerometer belonging to the “nano” family of ST motion sensors.

It includes a sensing element and an IC interface to provide an analog signal to the external world.

Key Features

  • Single voltage supply operation.
  • ±2 g full-scale.
  • High stability over temperature.
  • Ratiometric output voltage.
  • Power-down mode.
  • Embedded self-test.
  • 10000 g high shock survivability.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LIS331HH MEMS digital output motion sensor ST Microelectronics
LIS302ALB MEMS motion sensor 3-axis - +-2g analog output piccolo accelerometer ST Microelectronics
LIS302ALK MEMS motion sensor ST Microelectronics
LIS302DL MEMS Motion Sensor ST Microelectronics
LIS302DLH MEMS digital output motion sensor ultra low-power high performance 3-axes piccolo accelerometer ST Microelectronics

Other Datasheets by STMicroelectronics

Part Number Description
LIS331AL MEMS inertial sensor
LIS331DL MEMS motion sensor
LIS33DE MEMS motion sensor
LIS302SG MEMS motion sensor
LIS344AL MEMS inertial sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

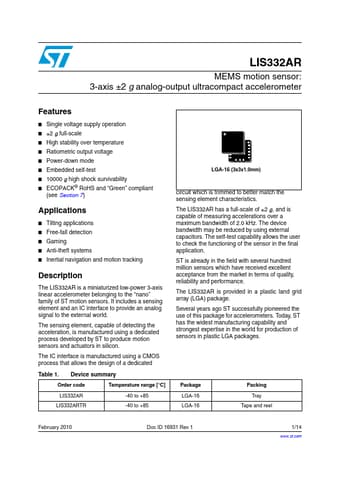

LIS332AR MEMS motion sensor: 3-axis ±2 g analog-output ultracompact accelerometer Features ■ Single voltage supply operation ■ ±2 g full-scale ■ High stability over temperature ■ Ratiometric output voltage ■ Power-down mode ■ Embedded self-test ■ 10000 g high shock survivability ■ ECOPACK® RoHS and “Green” compliant (see Section 7) Applications ■ Tilting applications ■ Free-fall detection ■ Gaming ■ Anti-theft systems ■ Inertial navigation and motion tracking Description The LIS332AR is a miniaturized low-power 3-axis linear accelerometer belonging to the “nano” family of ST motion sensors. It includes a sensing element and an IC interface to provide an analog signal to the external world.
