LM334 THREE TERMINAL ADJUSTABLE CURRENT SOURCES

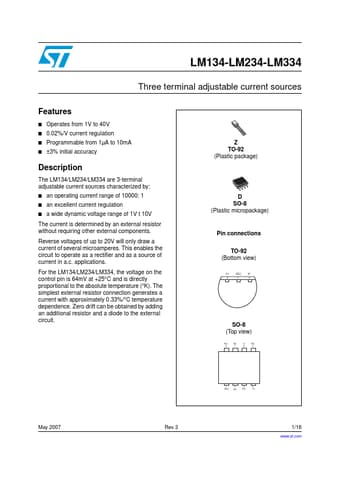

📥 Download Datasheet  Datasheet Preview Page 1

Description

LM134-LM234 LM334 THREE TERMINAL ADJUSTABLE CURRENT SOURCES ....OPERATES from 1V to 40V 0.02% V CURRENT REGULATION PROGRAMMABLE from 1µA to 10mA.
The LM134/LM234/LM334 are 3-terminal adjustable current sources characterized by : - an operating current range of 10000 : 1 - an excellent current re.

📥 Download Datasheet

Preview of LM334 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* For the LM134/LM234/LM334, the voltage on the control pin is 64mV at +25oC and is directly proportionalto the absolute temperature (oK). The simplest external resistor connection generates a current with ≈ 0.33%/oC temperature dependence. Zero drift can be obtainedby adding an additionalresistor an
