LNBK10 Datasheet - STMicroelectronics

LNBK10 LNB SUPPLY AND CONTROL VOLTAGE REGULATOR PARALLEL INTERFACE

Intended for analog and digital satellite receivers, the LNBK is a monolithic linear voltage regulator, assembled in Multiwatt-15, PowerSO-20 and PowerSO-10, specifically designed to provide the powering voltages and the interfacing signals to the LNB downconverter situated in the antenna via the co.

® LNBK10 SERIES LNBK20 LNB SUPPLY AND CONTROL VOLTAGE REGULATOR (PARALLEL INTERFACE) s s s s s s s s s s s s REDUCED OUTPUT CURRENT VERSION OF LNBP1X AND LNBP20 SERIES COMPLETE INTERFACE FOR TWO LNBs REMOTE SUPPLY AND CONTROL LNB SELECTION AND STAND-BY FUNCTION BUILT-IN TONE OSCILLATOR FACTORY TRIMMED AT 22KHz FAST OSCILLATOR START-UP FACILITATES DiSEqC™ ENCODING TWO SUPPLY INPUTS FOR LOWEST DISSIPATION BYPASS FUNCTION FOR SLAVE OPERATION LNB SHORT CIRCUIT PROTECTION AND DIAGNOSTIC A.

LNBK10 Features

* IOL = 8mA VOH =

LNBK10 Datasheet (205.77 KB)

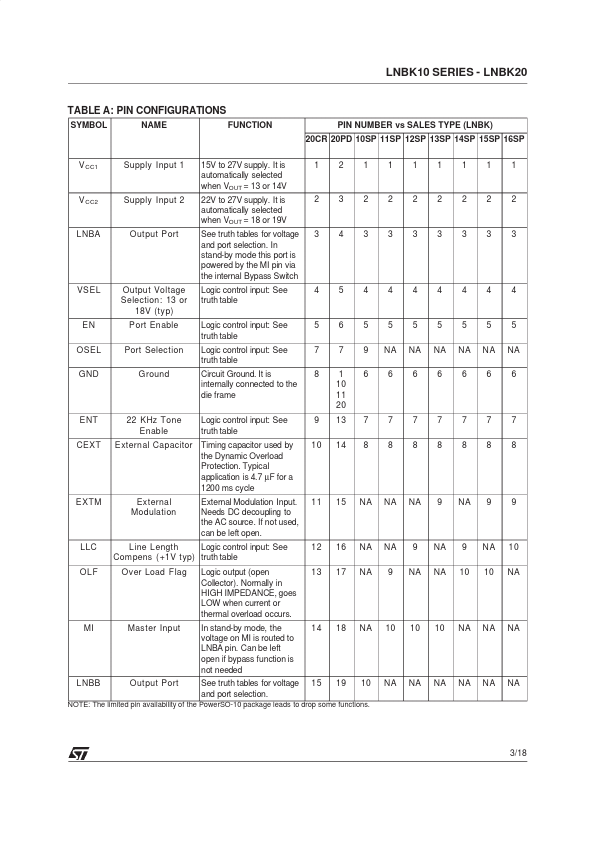

LNBK10 Datasheet Preview — Preview of LNBK10 PDF

Datasheet Details

Part number:

LNBK10

Manufacturer:

STMicroelectronics ↗

File Size:

205.77 KB

Description:

Lnb supply and control voltage regulator parallel interface.
