LY330ALH Datasheet - STMicroelectronics

LY330ALH - MEMS motion sensor

The LY330ALH is a high performance low-power single-axis micro-machined gyroscope capable of measuring angular rate along the yaw axis.

It provides excellent temperature stability and high resolution over extended operating temperature range (-40 °C to +85 °C).

The LY330ALH has a full scale of ±300

www.DataSheet4U.com LY330ALH MEMS motion sensor: high performance ±300 dps analog yaw-rate gyroscope The device includes a sensing element composed of a single driving mass, kept in continuous oscillation and capable of reacting, based on the Coriolis principle, when an angular rate is applied.

A CMOS IC provides the measured angular rate to the external world through an analog output voltage, allowing high levels of integration and production trimming to better match sensing element characteri

LY330ALH Features

* 2.7 V to 3.6 V single-supply operation Wide operating temperature range (-40 °C to +85 °C) High stability over temperature Analog absolute angular-rate outputs Integrated low-pass filters Low power consumption Sleep mode Embedded power-down Embedded self-test High shock and vibration survivability ®

LY330ALH_STMicroelectronics.pdf

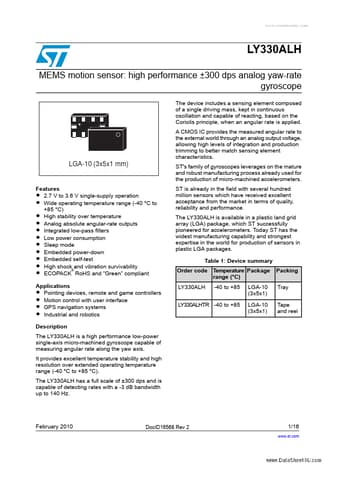

Preview of LY330ALH PDF
LY330ALH Datasheet Preview Page 2 LY330ALH Datasheet Preview Page 3

Datasheet Details

Part number:

LY330ALH

Manufacturer:

STMicroelectronics ↗

File Size:

303.71 KB

Description:

Mems motion sensor.
