LY503ALH Datasheet - STMicroelectronics

LY503ALH - MEMS motion sensor

The LY503ALH is a low-power single-axis micromachined gyroscope capable of measuring angular rate along yaw axis.

It provides excellent temperature stability and high resolution over an extended operating temperature range (-40 °C to +85 °C).

Table 1.

Device summary Temperature range (°C) -40 to +85

LY503ALH Features

* 2.7 V to 3.6 V single-supply operation Wide operating temperature range (-40 °C to +85 °C) High stability overtemperature Analog absolute angular-rate output Two separate outputs (1x and 4x amplified) Integrated low-pass filters Low

LY503ALH_STMicroelectronics.pdf

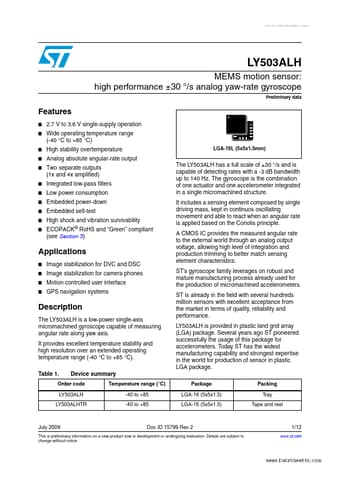

Preview of LY503ALH PDF
LY503ALH Datasheet Preview Page 2 LY503ALH Datasheet Preview Page 3

Datasheet Details

Part number:

LY503ALH

Manufacturer:

STMicroelectronics ↗

File Size:

243.54 KB

Description:

Mems motion sensor.
