M24256-BR, M24256-BW, 256-Kbit serial I2C bus EEPROM

M24256-BW M24256-BR M24256-BF M24256-DR M24256-DF Datasheet 256-Kbit serial I²C bus EEPROM TSSOP8 (DW) 169 mil width SO8N (MN) 150 mil width UFDFPN.
1 Description The M24256 is a 256-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 32 K × 8 bits.

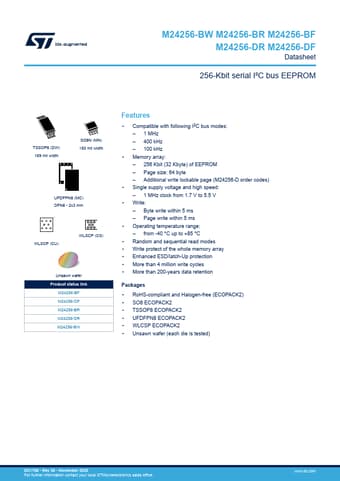

datasheet Preview Page 1 from Datasheet4u.com

M24256-BW-STMicroelectronics.pdf

M24256-BR Datasheet Preview — This datasheet PDF includes multiple part numbers: M24256-BR, M24256-BW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M24256-BR, M24256-BW

Manufacturer:

STMicroelectronics ↗

File Size:

753.08 KB

Description:

256-Kbit serial I2C bus EEPROM

Note:

This datasheet PDF includes multiple part numbers: M24256-BR, M24256-BW.
Please refer to the document for exact specifications by model.

Features

* Compatible with following I2C bus modes:
* 1 MHz
* 400 kHz
* 100 kHz
* Memory array:
* 256 Kbit (32 Kbyte) of EEPROM
* Page size: 64 byte
* Additional write lockable page (M24256-D order codes)
* Single supply voltage and high
