M24C16-RMN6P, M24C16-W 16-Kbit serial I2C bus EEPROM

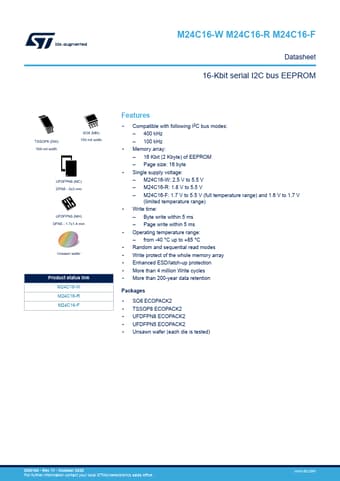

📥 Download Datasheet  Datasheet Preview Page 1

Description

M24C16-W M24C16-R M24C16-F Datasheet 16-Kbit serial I2C bus EEPROM TSSOP8 (DW) 169 mil width SO8 (MN) 150 mil width UFDFPN8 (MC) DFN8 - 2x3 mm UFDF.
1 Description The M24C16 is a 16-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 2K x 8 bits.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M24C16-RMN6P, M24C16-W. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
M24C16-RMN6P, M24C16-W
Manufacturer
STMicroelectronics ↗
File Size
649.66 KB
Datasheet
M24C16-W-STMicroelectronics.pdf
Description
16-Kbit serial I2C bus EEPROM
Note
This datasheet PDF includes multiple part numbers: M24C16-RMN6P, M24C16-W.
Please refer to the document for exact specifications by model.

Features

* Compatible with following I2C bus modes:
* 400 kHz
* 100 kHz
* Memory array:
* 16 Kbit (2 Kbyte) of EEPROM
* Page size: 16 byte
* Single supply voltage:
* M24C16-W: 2.5 V to 5.5 V
* M24C16-R: 1.8 V to 5.5 V
* M24C16-F:
