M24C64-R, M24C64-W, 64-Kbit serial I2C bus EEPROM

M24C64-W M24C64-R M24C64-F M24C64-DF Datasheet 64-Kbit serial I²C bus EEPROMs WLCSP (CU) WLCSP (CS) UFDFPN5 (MH) DFN5 - 1.7 x 1.4 mm SO8N (MN) 150.
1 Description The M24C64 is a 64-Kbit I2C-compatible EEPROM (electrically erasable programmable memory) organized as 8K × 8 bits.

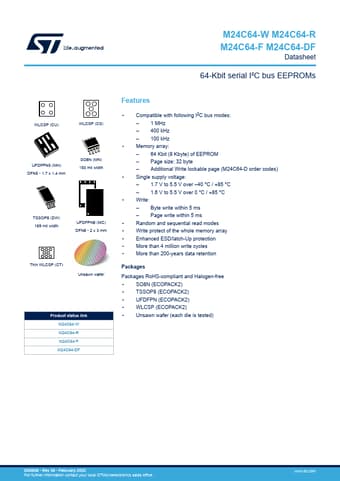

datasheet Preview Page 1 from Datasheet4u.com

M24C64-W-STMicroelectronics.pdf

M24C64-R Datasheet Preview — This datasheet PDF includes multiple part numbers: M24C64-R, M24C64-W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M24C64-R, M24C64-W

Manufacturer:

STMicroelectronics ↗

File Size:

1.29 MB

Description:

64-Kbit serial I2C bus EEPROM

Note:

This datasheet PDF includes multiple part numbers: M24C64-R, M24C64-W.
Please refer to the document for exact specifications by model.

Features

* Compatible with following I2C bus modes:
* 1 MHz
* 400 kHz
* 100 kHz
* Memory array:
* 64 Kbit (8 Kbyte) of EEPROM
* Page size: 32 byte
* Additional Write lockable page (M24C64-D order codes)
* Single supply voltage:
