M74HCT4051 Datasheet - STMicroelectronics

M74HCT4051 SINGLE 8-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER

roThe M74HCT4051 is a single eight-channel analog MULTIPLEXER/DEMULTIPLEXER Pfabricated with silicon gate C2MOS technology teand it is pin to pin compatible with the equivalent lemetal gate CMOS4000B series. oIt contains 8 bidirectional and digitally controlled sanalog switches. ObPIN CONNE.
M74HCT4051 SINGLE 8-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER s LOW POWER DISSIPATION: ICC = 4µA (MAX.) at TA=25°C s LOGIC LEVEL TRANSLATION TO ENABLE TTL LOGIC SIGNAL TO COMMUNICATE WITH ±5V ANALOG SIGNAL )s LOW "ON" RESISTANCE: t(s70Ω TYP. (VCC - VEE = 4.5V) 50Ω TYP. (VCC - VEE = 9V) cs WIDE ANALOG INPUT VOLTAGE RANGE: du±6V ros FAST SWITCHING: Ptpd = 13ns (TYP.) at TA = 25 °C s LOW CROSSTALK BETWEEN SWITCHES tes HIGH ON/OFF OUTPUT VOLTAGE RATIO les WIDE OPERATING SUPPLY VOLTAGE oRANGE (VC.

M74HCT4051-STMicroelectronics.pdf

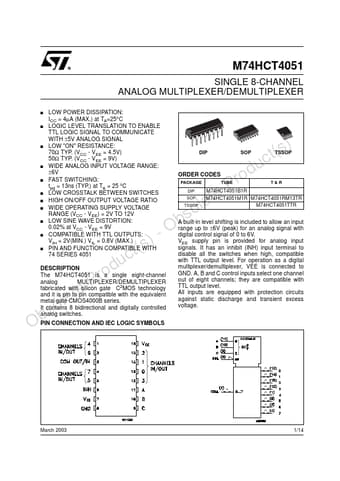

Preview of M74HCT4051 PDF
M74HCT4051 Datasheet Preview Page 2 M74HCT4051 Datasheet Preview Page 3

Datasheet Details

Part number:

M74HCT4051

Manufacturer:

STMicroelectronics ↗

File Size:

314.86 KB

Description:

Single 8-channel analog multiplexer/demultiplexer.
