MC34063AB Datasheet - STMicroelectronics

DC-DC converter controller

MC34063AB Features

* Output switch current in excess of 1.5 A

* 2 % reference accuracy

* Low quiescent current: 2.5 mA (typ.)

* Operating from 3 V to 40 V

* Frequency operation to 100 kHz

* Active current limiting MC34063AB, MC34063AC, MC34063EB, MC34063EC DC-DC convert

MC34063AB General Description

The MC34063A/E series is a monolithic control circuit which delivers the main functions for DCDC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output sw.

MC34063AB Datasheet (941.90 KB)

Preview of MC34063AB PDF

Datasheet Details

Part number:

MC34063AB

Manufacturer:

STMicroelectronics ↗

File Size:

941.90 KB

Description:

Dc-dc converter controller.

📁 Related Datasheet

MC34063A DC-DC Converter Controller (HTC)

MC34063A DC-to-DC Converter Controller (Motorola)

MC34063A Inverting Regulator (ON Semiconductor)

MC34063A DC/DC CONVERTER CONTROLLER (AIC)

MC34063A SMPS Controller (Fairchild)

MC34063A DC-DC CONVERTER CONTROL CIRCUITS (STMicroelectronics)

MC34063A DC TO DC CONVERTER CONTROLLER (UTC)

MC34063A 1.5-A Peak Boost/Buck/Inverting Switching Regulators (Texas Instruments)

MC34063AC DC-DC converter controller (STMicroelectronics)

MC34063AD DC-DC Converter Controller (HTC)

TAGS

MC34063AB DC-DC converter controller STMicroelectronics

Image Gallery

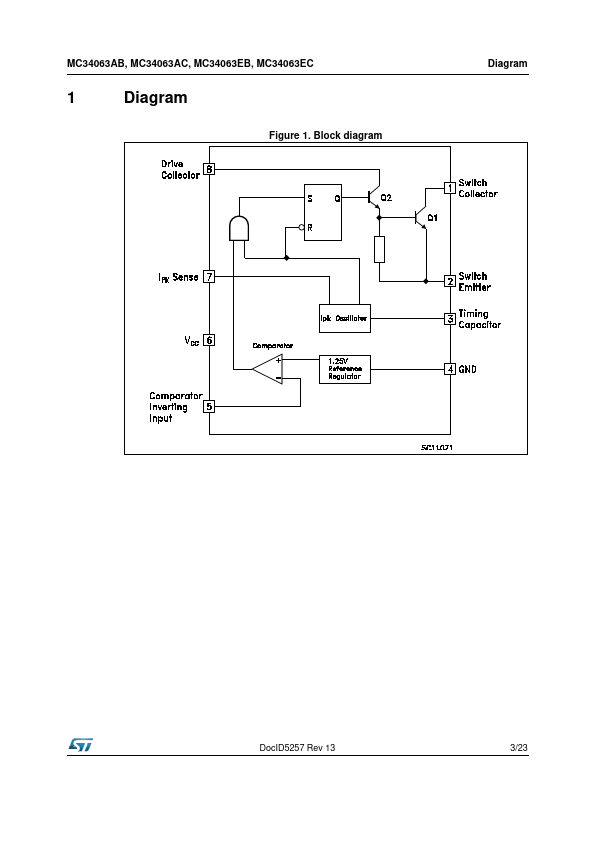

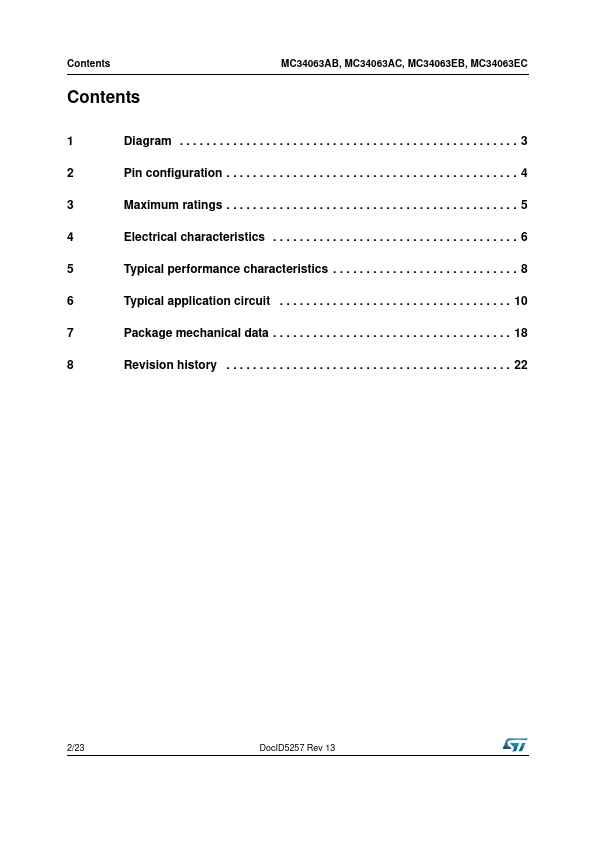

MC34063AB Datasheet Preview Page 2 MC34063AB Datasheet Preview Page 3
