MC34063AC, MC34063AB Datasheet - STMicroelectronics

MC34063AC DC-DC converter controller

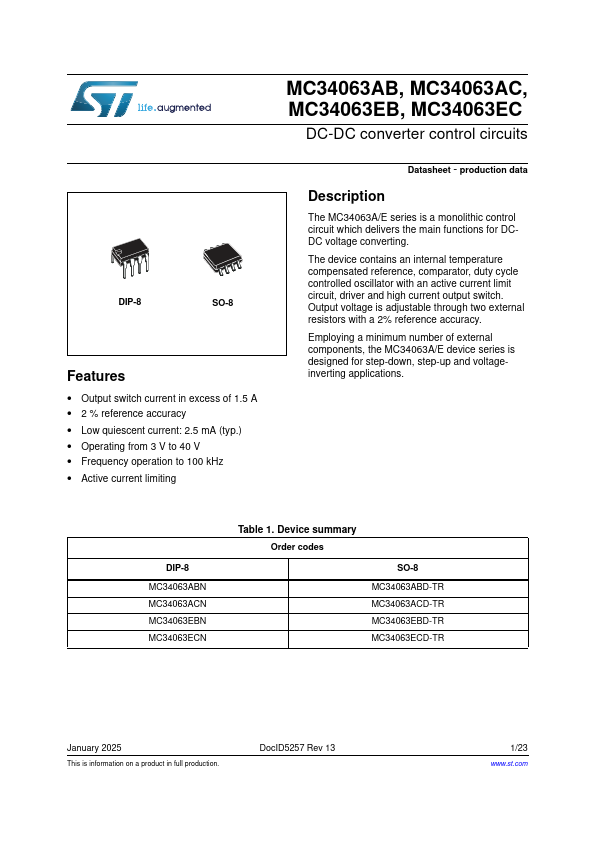

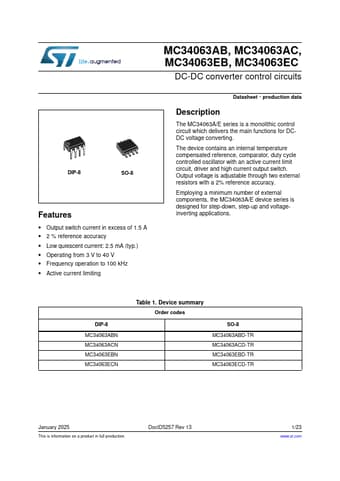

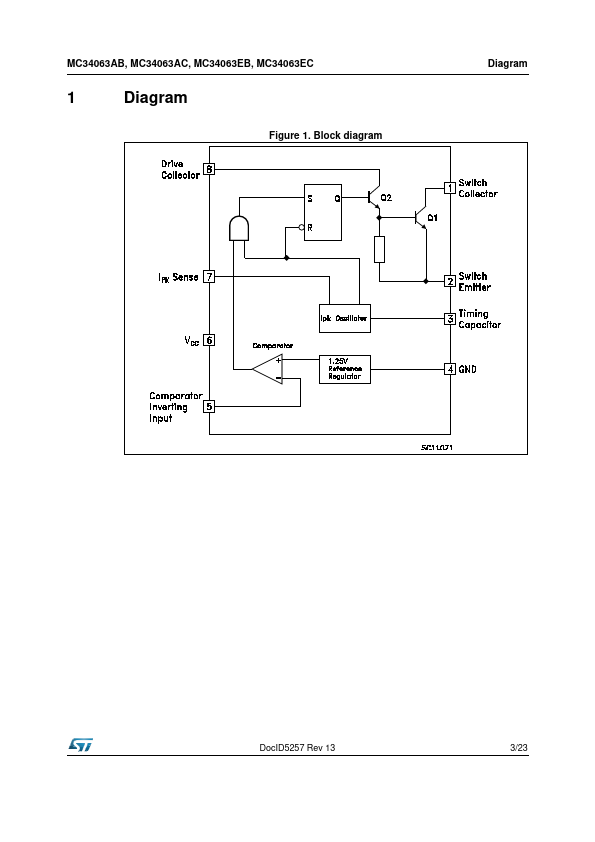

The MC34063A/E series is a monolithic control circuit which delivers the main functions for DCDC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output sw.

MC34063AC Features

* Output switch current in excess of 1.5 A

* 2 % reference accuracy

* Low quiescent current: 2.5 mA (typ.)

* Operating from 3 V to 40 V

* Frequency operation to 100 kHz

* Active current limiting MC34063AB, MC34063AC, MC34063EB, MC34063EC DC-DC convert

MC34063AB-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: MC34063AC, MC34063AB. Please refer to the document for exact specifications by model.
