MC34063EC, MC34063AB - DC-DC converter controller

MC34063EC Description

DIP-8 SO-8 .
The MC34063A/E series is a monolithic control circuit which delivers the main functions for DCDC voltage converting.

MC34063EC Features

* Output switch current in excess of 1.5 A
* 2 % reference accuracy
* Low quiescent current: 2.5 mA (typ. )
* Operating from 3 V to 40 V
* Frequency operation to 100 kHz
* Active current limiting MC34063AB, MC34063AC, MC34063EB, MC34063EC DC-DC convert

MC34063EC Applications

* DIP-8 MC34063ABN MC34063ACN MC34063EBN MC34063ECN Table 1. Device summary Order codes SO-8 MC34063ABD-TR MC34063ACD-TR MC34063EBD-TR MC34063ECD-TR January 2025 This is information on a product in full production. DocID5257 Rev 13 1/23 www. st. com 23 Contents Contents MC34063AB, MC34063AC, M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC34063EC, MC34063AB. Please refer to the document for exact specifications by model.

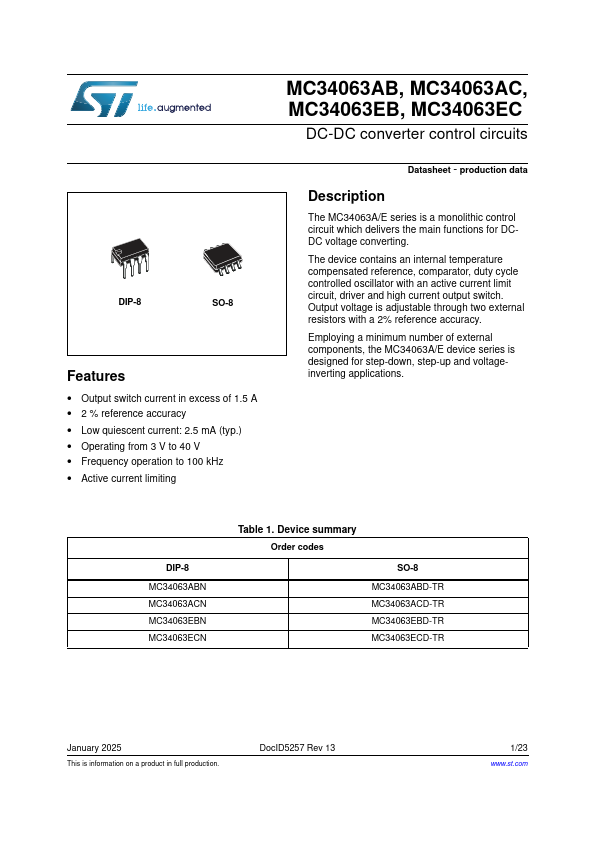

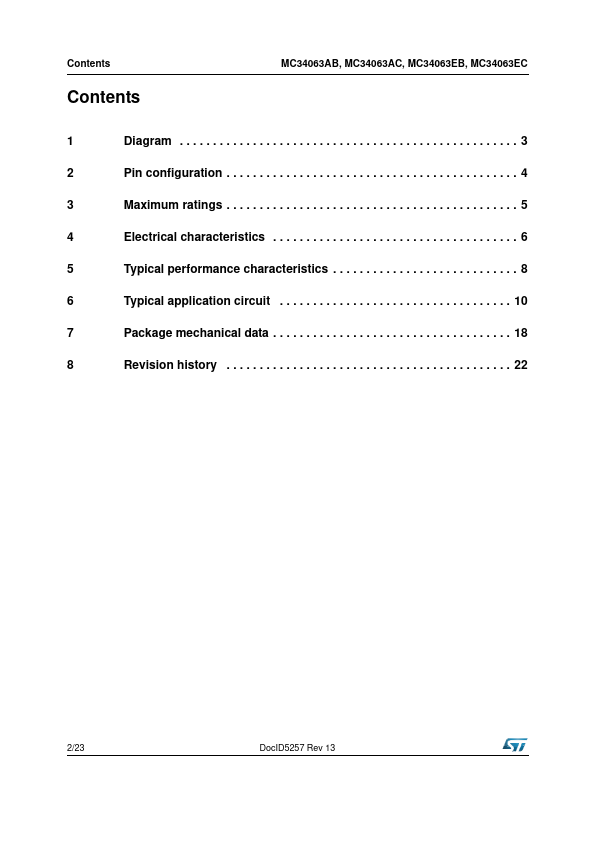

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC34063EC, MC34063AB
Manufacturer
STMicroelectronics ↗
File Size
916.57 KB
Datasheet
MC34063AB-STMicroelectronics.pdf
Description
DC-DC converter controller
Note
This datasheet PDF includes multiple part numbers: MC34063EC, MC34063AB.
Please refer to the document for exact specifications by model.
