MP34DT05 - MEMS audio sensor omnidirectional digital microphone

Description

The MP34DT05 is an ultra-compact, low-power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface.

Features

  • Single supply voltage.
  • Low power consumption.
  • AOP = 122.5 dBSPL.
  • 64 dB signal-to-noise ratio.
  • Omnidirectional sensitivity.
  • 26 dBFS ± 3 dB sensitivity.
  • PDM output.
  • HCLGA package.
  • Top-port design.
  • SMD-compliant.
  • EMI-shielded.

📥 Download Datasheet

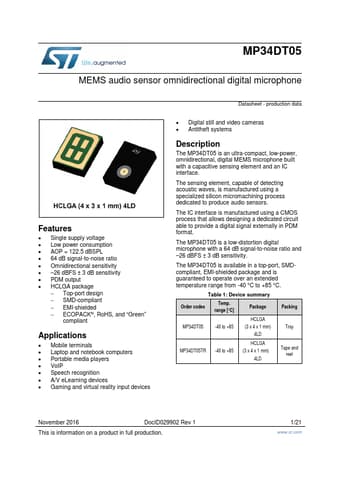

Datasheet preview – MP34DT05

Datasheet Details

Part number MP34DT05
Manufacturer STMicroelectronics
File Size 620.09 KB
Description MEMS audio sensor omnidirectional digital microphone
Datasheet download datasheet MP34DT05 Datasheet
Additional preview pages of the MP34DT05 datasheet.

📁 Similar Datasheet

  • MP3401A - P-Channel MOSFET (Major Power)
  • MP3414 - Step-up Converter (MPS)
  • MP3414A - 5.5V Synchronous Step-Up Converter (MPS)
  • MP3414AGJ - 5.5V Synchronous Step-Up Converter (MPS)
  • MP3414DJ - Step-up Converter (MPS)
  • MP3415 - 3.6A Step-Up Converter (MPS)
  • MP3415GG - 3.6A Step-Up Converter (MPS)
  • MP3416 - Step-Up Converter (MPS)
  • MP3416GJ - Step-Up Converter (MPS)
  • MP3416GQH - Step-Up Converter (MPS)
Other Datasheets by STMicroelectronics
  • MP34DT05-A - MEMS audio sensor omnidirectional digital microphone
  • MP34DT01 - MEMS audio sensor
  • MP34DT01-M - MEMS audio sensor omnidirectional digital microphone
  • MP34DT04 - MEMS audio sensor omnidirectional digital microphone
  • MP34DT04-C1 - MEMS audio sensor omnidirectional digital microphone
  • MP34DT06J - MEMS audio sensor omnidirectional digital microphone
  • MP34DB01 - MEMS audio sensor

Full PDF Text Transcription

Click to expand full text
MP34DT05 MEMS audio sensor omnidirectional digital microphone Features • Single supply voltage • Low power consumption • AOP = 122.5 dBSPL • 64 dB signal-to-noise ratio • Omnidirectional sensitivity • –26 dBFS ± 3 dB sensitivity • PDM output • HCLGA package − Top-port design − SMD-compliant − EMI-shielded − ECOPACK®, RoHS, and “Green” compliant Applications • Mobile terminals • Laptop and notebook computers • Portable media players • VoIP • Speech recognition • A/V eLearning devices • Gaming and virtual reality input devices Datasheet - production data • Digital still and video cameras • Antitheft systems Description The MP34DT05 is an ultra-compact, low-power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface.
