OP07C - VERY LOW OFFSET SINGLE BIPOLAR OPERATIONAL AMPLIFIERS

Datasheet Summary

Description

The OP07C is a very high precision op amp with an offset voltage maximum of 150µV.

Offering also low input current (1.8nA) and high gain (400V/mV), the OP07C is particularly suitable for instrumentation applications.

📥 Download Datasheet

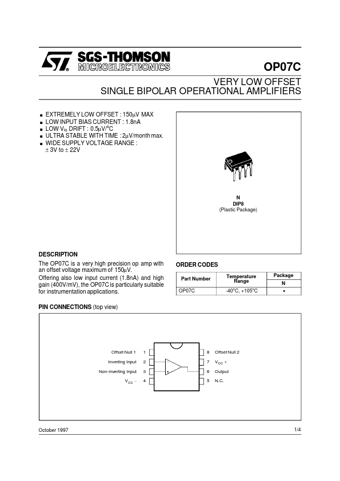

Datasheet preview – OP07C

Datasheet Details

Part number OP07C
Manufacturer STMicroelectronics
File Size 43.40 KB
Description VERY LOW OFFSET SINGLE BIPOLAR OPERATIONAL AMPLIFIERS
Datasheet download datasheet OP07C Datasheet
Additional preview pages of the OP07C datasheet.

📁 Similar Datasheet

  • OP07C - Precision Operational Amplifiers (Texas Instruments)
  • OP07 - Ultralow Offset Voltage Operational Amplifier (Analog Devices)
  • OP07 - Precision Operational Amplifiers (Texas Instruments)
  • OP07 - Precision Operational Amplifier (HTC)
  • OP07D - Maximum Offset Voltage Op Amp (Analog Devices)
  • OP07D - Precision Operational Amplifiers (Texas Instruments)
  • OP01 - Inverting High Speed Operational Amplifier (PMI)
  • OP01 - Inverting High Speed Operational Amplifier (Analog)
  • OP01 - Inverting High Speed Operational Amplifier (Calogic)
  • OP02 - General - Purpose Operational Amplifier (Analog Devices)
Other Datasheets by STMicroelectronics
  • OP07 - Very low offset single bipolar operational amplifier

Full PDF Text Transcription

Click to expand full text
OP07C VERY LOW OFFSET SINGLE BIPOLAR OPERATIONAL AMPLIFIERS . . . . . EXTREMELY LOW OFFSET : 150µV MAX LOW INPUT BIAS CURRENT : 1.8nA LOW Vio DRIFT : 0.5µV/oC ULTRA STABLE WITH TIME : 2µV/month max. WIDE SUPPLY VOLTAGE RANGE : ± 3V to ± 22V N DIP8 (Plastic Package) DESCRIPTION The OP07C is a very high precision op amp with an offset voltage maximum of 150µV. Offering also low input current (1.8nA) and high gain (400V/mV), the OP07C is particularly suitable for instrumentation applications. PIN CONNECTIONS (top view) ORDER CODES Part Number OP07C Temperature Range -40 C, +105 C o o Package N • Offset Null 1 Inverting Input Non-inverting Input V CC 1 2 3 4 8 7 6 5 Offset Null 2 VCC Output N.C.
