P0109DA

0.8A 400V high immunity sensitive SCR thyristor

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics P0109DA-5AL3 SCR 400V 800MA TO92-3 DigiKey 10000 100000 units
$0.07

P0109DA Datasheet (165.90 KB)

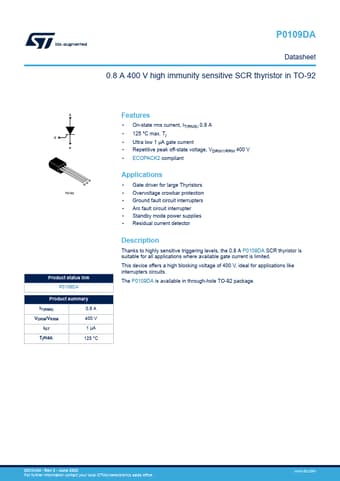

Preview of P0109DA PDF

Datasheet Details

Part number:

P0109DA

Manufacturer:

STMicroelectronics ↗

File Size:

165.90 KB

Description:

0.8a 400v high immunity sensitive scr thyristor.
P0109DA Datasheet 0.8 A 400 V high immunity sensitive SCR thyristor in TO-92 A G K TO-92 KGA Product status link P0109DA Product summary IT(RMS).

P0109DA Features

* On-state rms current, IT(RMS) 0.8 A

* 125 °C max. Tj

* Ultra low 1 µA gate current

* Repetitive peak off-state voltage, VDRM/VRRM 400 V

* ECOPACK2 compliant Applications

* Gate driver for large Thyristors

* Overvoltage crowbar protection

P0109DA General Description

Thanks to highly sensitive triggering levels, the 0.8 A P0109DA SCR thyristor is suitable for all applications where available gate current is limited. This device offers a high blocking voltage of 400 V, ideal for applications like interrupters circuits. The P0109DA is available in through-hole TO-.
