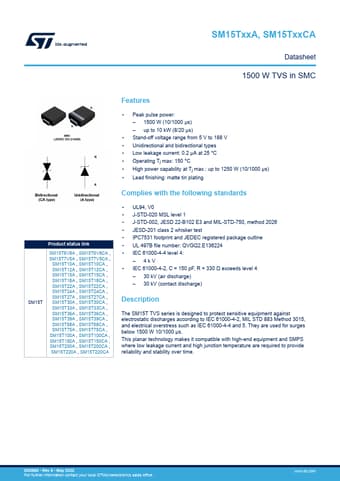

SM15T10A, SM15T - 1500w TVS

STMicroelectronics

SM15T10A Datasheet Preview — This datasheet PDF includes multiple part numbers: SM15T10A, SM15T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SM15T10A, SM15T
Manufacturer	STMicroelectronics ↗
File Size	659.09 KB
Description	1500w TVS
Datasheet	SM15T-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SM15T10A, SM15T. Please refer to the document for exact specifications by model.

SM15T10A Product details

Description

The SM15T TVS series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5.

Features

Peak pulse power:.
1500 W (10/1000 μs).
up to 10 kW (8/20 μs).
Stand-off voltage range from 5 V to 188 V.
Unidirectional and bidirectional types.
Low leakage current: 0.2 µA at 25 °C.
Operating Tj max: 150 °C.
High power capability at Tj max. : up to 1250 W (10/1000 µs).
Lead finishing: matte tin plating Complies with the following standards.
UL94, V0.
J-STD-020 MSL level 1.
J-STD-002, JES.
