SM15T68CAY, SM15T6V8AY Datasheet - STMicroelectronics

SM15T68CAY Automotive 1500W TVS

The SM15TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are requi.
SM15TxxAY, SM15TxxCAY Datasheet Automotive 1500 W TVS in SMC K Bidirectional A Unidirectional Product status link SM15T6V8AY, SM15T6V8CAY, SM15T7V5AY, SM15T7V5CAY, SM15T10AY, SM15T10CAY, SM15T12AY, SM15T12CAY, SM15T15AY, SM15T15CAY, SM15T18AY, SM15T18CAY, SM15T22AY, SM15T22CAY, SM15T24AY, SM15T24CAY, SM15T27AY, SM5T27CAY, SM15T30AY, SM15T30CAY, SM15T33AY, SM15T33CAY, SM15T36AY, SM15T36CAY, SM15T39AY, SM15T39CAY, SM15T47AY, SM15T47CAY, SM15T56AY, SM15T56CAY, SM15T58AY, SM15T68CAY, SM15T75AY, .

SM15T68CAY Features

* AEC-Q101 qualified

* Peak pulse power: 1500 W (10/1000 μs) and 10 kW (8/20 μs)

* Stand-off voltage range from 5.8 V to 70 V

* Unidirectional and bidirectional types

* Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C

* Operating Tj max: 150 °C

SM15T6V8AY-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SM15T68CAY, SM15T6V8AY. Please refer to the document for exact specifications by model.

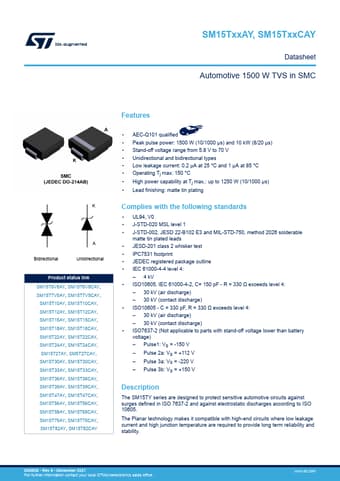

SM15T68CAY Datasheet Preview Page 2 SM15T68CAY Datasheet Preview Page 3

Datasheet Details

Part number:

SM15T68CAY, SM15T6V8AY

Manufacturer:

STMicroelectronics ↗

File Size:

855.36 KB

Description:

Automotive 1500w tvs.

Note:

This datasheet PDF includes multiple part numbers: SM15T68CAY, SM15T6V8AY.
Please refer to the document for exact specifications by model.
