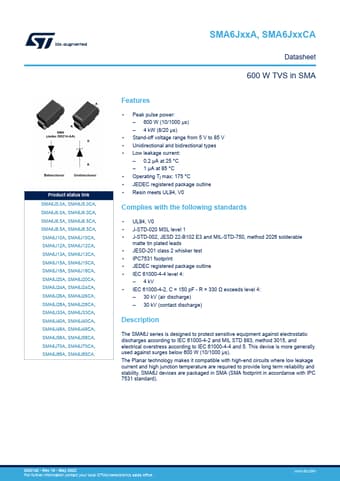

SMA6J100CA, SMA6J - 600W TVS

STMicroelectronics

SMA6J100CA Datasheet Preview — This datasheet PDF includes multiple part numbers: SMA6J100CA, SMA6J. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SMA6J100CA, SMA6J
Manufacturer	STMicroelectronics ↗
File Size	634.44 KB
Description	600W TVS
Datasheet	SMA6J_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: SMA6J100CA, SMA6J. Please refer to the document for exact specifications by model.

SMA6J100CA Product details

Description

The SMA6J series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5.

Features

Peak pulse power:.
600 W (10/1000 μs).
4 kW (8/20 μs).
Stand-off voltage range from 5 V to 85 V.
Unidirectional and bidirectional types.
Low leakage current:.
0.2 µA at 25 °C.
1 μA at 85 °C.
Operating Tj max: 175 °C.
JEDEC registered package outline.
Resin meets UL94, V0 Complies with the following standards.
UL94, V0.
J-STD-020 MSL level 1.
J-STD-002, JESD 22-B102 E3 an.
