ST1284 Datasheet - STMicroelectronics

ST1284 Parallel port single termination network

The ST1284-01A8 is a highly integrated termination for enhanced high speed parallel ports. The integrated termination complies to the IEEE1284 Standard recommendations and government EMC compatibility requirements. It is built around two basic cells. The first one (cell 1) provides line termination,.

ST1284 Features

* One device for parallel port termination Compliant with IEEE1284 standard EMI / RFI noise filtering Highly integrated solution in 28 pins QSOP package One single device provides the proper termination for 8 data lines, 1 strobe line, 4 control lines and 4 status lines In sys

ST1284 Datasheet (272.63 KB)

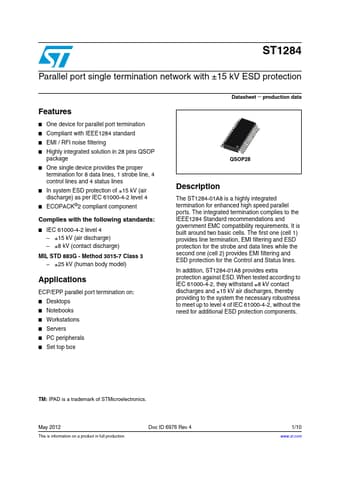

Preview of ST1284 PDF

Datasheet Details

Part number:

ST1284

Manufacturer:

STMicroelectronics ↗

File Size:

272.63 KB

Description:

Parallel port single termination network.
