ST72F651, ST7265x Datasheet - STMicroelectronics

ST72F651 FULL-SPEED USB 8-BIT MCU

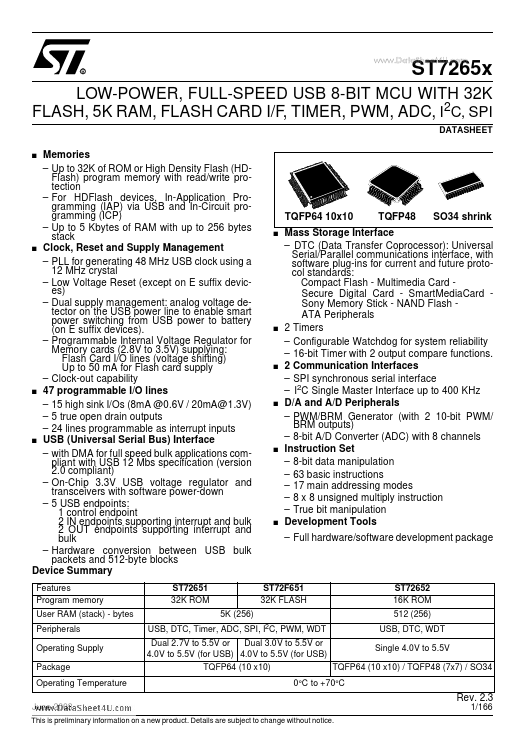

ST7265x www.DataSheet4U.com LOW-POWER, FULL-SPEED USB 8-BIT MCU WITH 32K FLASH, 5K RAM, FLASH CARD I/F, TIMER, PWM, ADC, I2C, SPI DATASHEET s Memories Up to 32K of ROM or High Density Flash (HDFlash) program memory with read/write protection For HDFlash devices, In-Application Programming (IAP) via USB and In-Circuit programming (ICP) Up to 5 Kbytes of RAM with up to 256 bytes stack s Clock, Reset and Supply Management PLL for generating 48 MHz USB clock .

ST72F651 Features

* Program memory User RAM (stack) - bytes Peripherals Operating Supply Package ST72651 ST72F651 ST72652 32K ROM 32K FLASH 16K ROM 5K (256) 512 (256) USB, DTC, Timer, ADC, SPI, I2C, PWM, WDT USB, DTC, WDT Dual 2.7V to 5.5V or Dual 3.0V to 5.5V or 4.0V to 5.5V (for USB) 4.0V to 5.5V (for USB)

ST7265x_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: ST72F651, ST7265x. Please refer to the document for exact specifications by model.

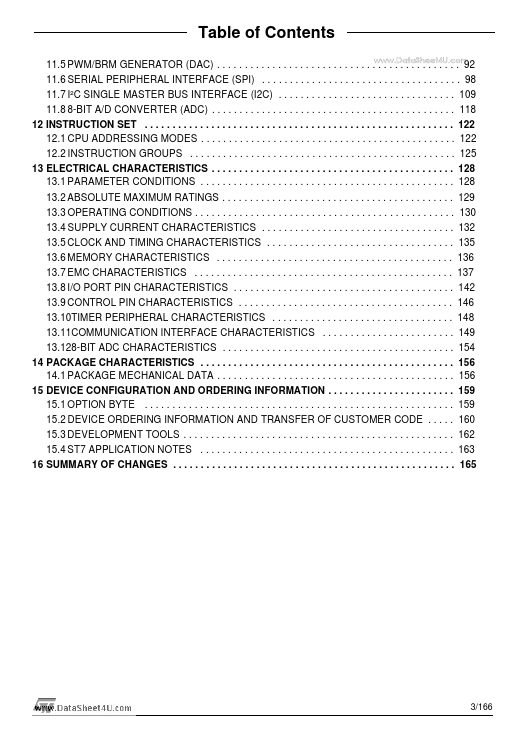

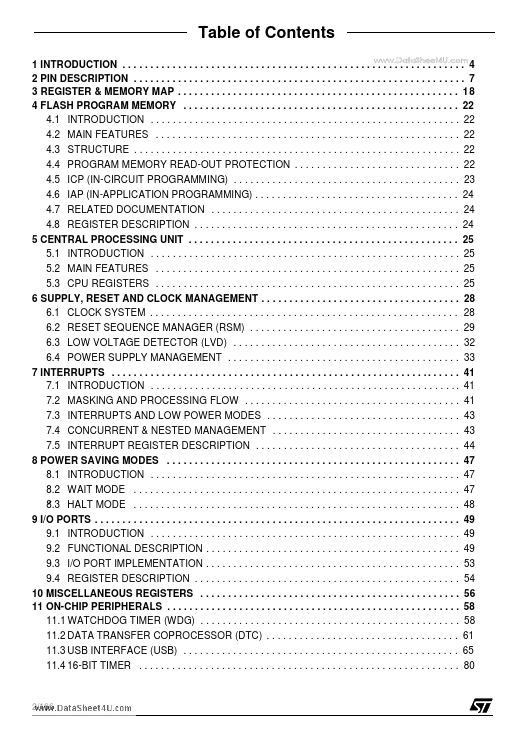

ST72F651 Datasheet Preview Page 2 ST72F651 Datasheet Preview Page 3

Datasheet Details

Part number:

ST72F651, ST7265x

Manufacturer:

STMicroelectronics ↗

File Size:

1.65 MB

Description:

Full-speed usb 8-bit mcu.

Note:

This datasheet PDF includes multiple part numbers: ST72F651, ST7265x.
Please refer to the document for exact specifications by model.
