ST92150JDV1Q-Auto, ST92124R9T-Auto - 8/16-bit single voltage Flash MCU

STMicroelectronics

Datasheet Details

Part number: ST92150JDV1Q-Auto, ST92124R9T-Auto
Manufacturer: STMicroelectronics ↗
File Size: 3.65 MB
Datasheet: ST92124R9T-Auto-STMicroelectronics.pdf
Description: 8/16-bit single voltage Flash MCU
Note: This datasheet PDF includes multiple part numbers: ST92150JDV1Q-Auto, ST92124R9T-Auto.
Please refer to the document for exact specifications by model.

. 27 2.1 I/O port alternate functions . 28 Voltage regulator .

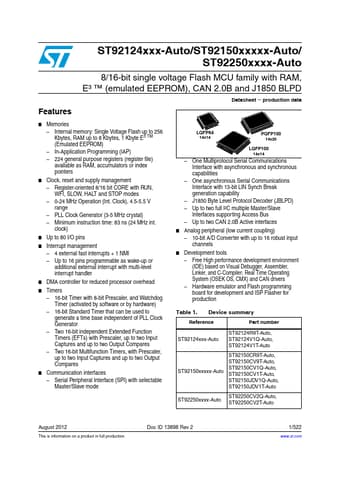

8/16-bit single voltage Flash MCU family with RAM, E³ ™ (emulated EEPROM), CAN 2.0B and J1850 BLPD Datasheet.
production data.
Memories.
Internal memory: Single Voltage Flash up to 256 Kbytes, RAM up to 8 Kbytes, 1 Kbyte E3 TM (Emulated EEPROM).
In-Application Programming (IAP).
224 general purpose registers (register file) available as RAM, accumulators or index pointers.
Clock, reset and supply management.
Register-oriented 8/16 bit CORE.
