STD170N4F7AG - N-channel Power MOSFET

STD170N4F7AG Description

STD170N4F7AG Automotive-grade N-channel 40 V, 2.2 mΩ typ., 80 A STripFET™ F7 Power MOSFET in a DPAK package Datasheet - production data Figure 1: In.
This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low onstate resistance, while.

STD170N4F7AG Features

* Order code VDS RDS(on) max. ID PTOT STD170N4F7AG 40 V 2.8 mΩ 80 A 172 W
* AEC-Q101 qualified
* Among the lowest RDS(on) on the market
* Excellent FoM (figure of merit)
* Low Crss/Ciss ratio for EMI immunity

📥 Download Datasheet

Preview of STD170N4F7AG PDF

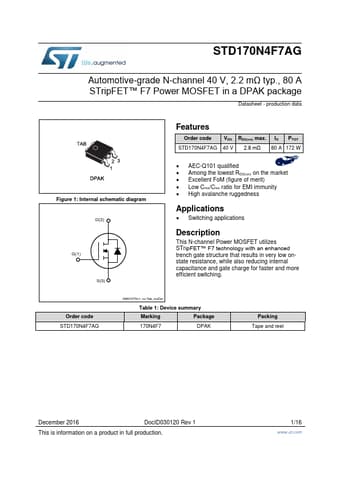

datasheet Preview Page 2 datasheet Preview Page 3
