STF5N95K5 - N-channel Power MOSFET

STMicroelectronics

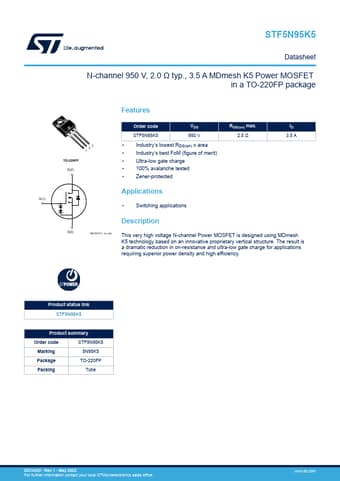

STF5N95K5 Datasheet Preview — Preview of STF5N95K5 PDF

Datasheet Details

Part number	STF5N95K5
Manufacturer	STMicroelectronics ↗
File Size	397.53 KB
Description	N-channel Power MOSFET
Datasheet	STF5N95K5-STMicroelectronics.pdf

STF5N95K5 Product details

Description

S(3) AM15572v1_no_tab This very high voltage N-channel Power MOSFET is designed using MDmesh K5 technology based on an innovative proprietary vertical structure.The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency.Product status link STF5N95K5 Product summary Order code STF5N95K5 Marking 5N95K5 Package TO-220FP Packing Tube DS14322 - Rev 1 - May 2023 For further information contact yo

Features

3 2 1 TO-220FP D(2) Order code VDS STF5N95K5 950 V.
Industry’s lowest RDS(on) x area.
Industry’s best FoM (figure of merit).
Ultra-low gate charge.
100% avalanche tested.
Zener-protected RDS(on) max. 2.5 Ω ID 3.5 A.
