STF9N80K5 - N-CHANNEL POWER MOSFET

STMicroelectronics

The STF9N80K5 by STMicroelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STF9N80K5 N-CHANNEL POWER MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STF9N80K5** N-CHANNEL POWER MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STF9N80K5
Manufacturer	STMicroelectronics
File Size	592.26 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STF9N80K5-STMicroelectronics.pdf
Additional preview pages of the STF9N80K5 datasheet.

STF9N80K5 Product details

Description

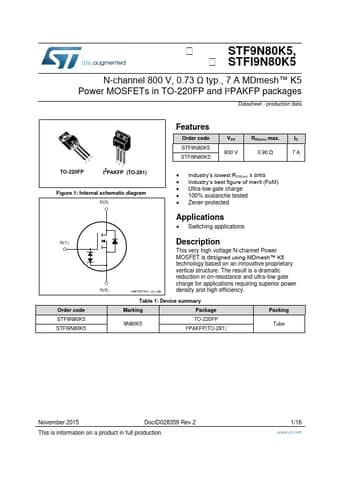

This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure.The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power S(3) AM15572v1_no_tab density and high efficiency.Order code Table 1: Device summary Marking Package Packing STF9N80K5 STFI9N80K5 9N80K5 TO-220FP I²PAKFP(TO-281) Tube November 2015 DocID028359 Rev 2 This is information

Features

Order code STF9N80K5 STFI9N80K5 VDS 800 V RDS(on) max. 0.90 Ω ID 7A TO-220FP I2PAKFP (TO-281) Figure 1: Internal schematic diagram D(2).
Industry’s lowest RDS(on) x area.
Industry’s best figure of merit (FoM).
Ultra-low gate charge.
100% avalanche tested.
Zener-protected.
