STM32F100ZD - 32-bit MCU

Product Overview

STMicroelectronics

Part number	STM32F100ZD
Manufacturer	STMicroelectronics
File Size	1.54 MB
Description	32-bit MCU
Datasheet	STM32F100ZD Datasheet
Note	This datasheet PDF includes multiple part numbers: STM32F100ZD, STM32F100RC. Please refer to the document for exact specifications by model.

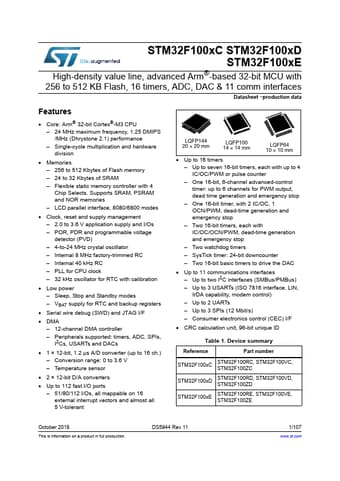

Additional preview pages of the STM32F100ZD datasheet.

Core: ARM® 32-bit Cortex®-M3 CPU.
24 MHz maximum frequency, 1.25 DMIPS /MHz (Dhrystone 2.1) performance.
Single-cycle multiplication and hardware division.
Memories.
256 to 512 Kbytes of Flash memory.
24 to 32 Kbytes of SRAM.
Flexible static memory controller with 4 Chip Selects. Supports SRAM, PSRAM and NOR memories.
LCD parallel interface, 8080/6800 modes.
Clock, reset and supply management.
2.0 to 3.6 V.
