STM32F101R8, STM32F101C8 32-bit MCU

STM32F101R8 Description

STM32F101x8 STM32F101xB Medium-density access line, ARM®-based 32-bit MCU with 64 or 128 KB Flash, 6 timers, ADC and 7 communication interfaces Datash.

STM32F101R8 Features

* Core: ARM® 32-bit Cortex® -M3 CPU
* 36 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
* Single-cycle multiplication and hardware division
* Memories
* 64 to 128 Kbytes of Flash memory
* 10 to 16 Kbytes of SRA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32F101R8, STM32F101C8. Please refer to the document for exact specifications by model.

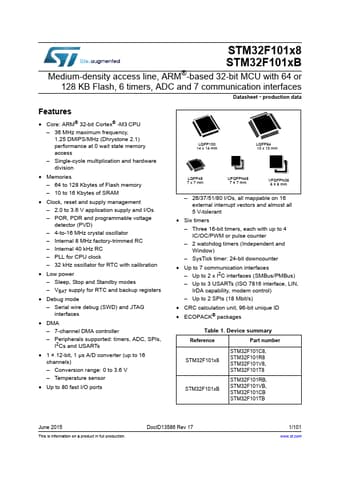

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32F101R8, STM32F101C8
Manufacturer
STMicroelectronics ↗
File Size
1.07 MB
Datasheet
STM32F101C8-STMicroelectronics.pdf
Description
32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32F101R8, STM32F101C8.
Please refer to the document for exact specifications by model.
