STM32F103RF - XL-density performance line ARM-based 32-bit MCU

Name: STM32F103RF
SKU: STM32F103RF-1303749

STMicroelectronics

The STM32F103RF by STMicroelectronics is a XL-density performance line ARM-based 32-bit MCU. Below is the official datasheet preview.

Datasheet Details

Part number	STM32F103RF
Manufacturer	STMicroelectronics
File Size	1.30 MB
Description	XL-density performance line ARM-based 32-bit MCU
Datasheet	STM32F103RF-STMicroelectronics.pdf

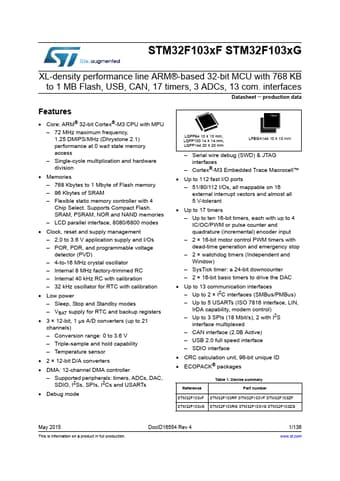

Additional preview pages of the STM32F103RF datasheet.

Core: ARM® 32-bit Cortex®-M3 CPU with MPU.
72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access.
Single-cycle multiplication and hardware division.
Memories.
768 Kbytes to 1 Mbyte of Flash memory.
96 Kbytes of SRAM.
Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories.
LCD parallel interface, 8080/6800 modes.
C.
