STM32F103RG, STM32F103RF XL-density performance line ARM-based 32-bit MCU

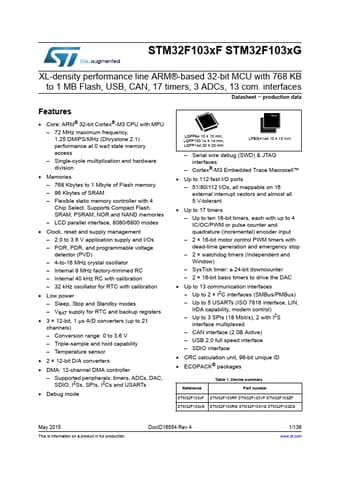

📥 Download Datasheet  Datasheet Preview Page 1

Description

STM32F103xF STM32F103xG XL-density performance line ARM-based 32-bit MCU with 768 KB to 1 MB Flash, USB, CAN, 17 timers, 3 ADCs, 13 communication inte.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32F103RG, STM32F103RF. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STM32F103RG, STM32F103RF
Manufacturer
STMicroelectronics ↗
File Size
1.30 MB
Datasheet
STM32F103RF-STMicroelectronics.pdf
Description
XL-density performance line ARM-based 32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32F103RG, STM32F103RF.
Please refer to the document for exact specifications by model.

Features

* Core: ARM 32-bit Cortex™-M3 CPU with MPU
* 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
* Single-cycle multiplication and hardware division
* Memories
* 768 Kbytes to 1 Mbyte of Flash memory
* 96 Kbytes o
