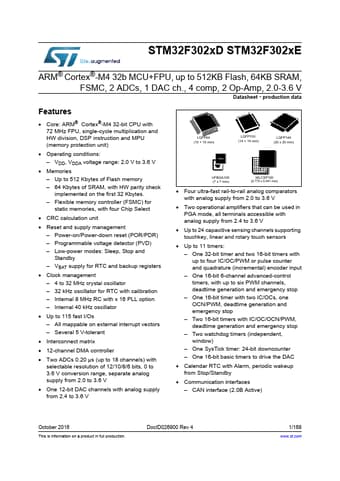

STM32F302RE, STM32F302RD - ARM Cortex-M4 32b MCU+FPU

STMicroelectronics

Datasheet Details

Part number	STM32F302RE, STM32F302RD
Manufacturer	STMicroelectronics
File Size	1.89 MB
Description	ARM Cortex-M4 32b MCU+FPU
Datasheet	STM32F302RD-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM32F302RE, STM32F302RD. Please refer to the document for exact specifications by model.

. 14 3.1 ARM® Cortex®-M4 core with FPU with embedded Flash and SRAM ...14 3.2 Memory protection unit (MPU) . .

Core: ARM® Cortex®-M4 32-bit CPU with 72 MHz FPU, single-cycle multiplication and HW division, DSP instruction and MPU (memory protection unit).
Operating conditions:.
VDD, VDDA voltage range: 2.0 V to 3.6 V.
Memories.
Up to 512 Kbytes of Flash memory.
64 Kbytes of SRAM, with HW parity check implemented on the first 32 Kbytes.
Flexible memory controller (FMC) for static memories, with four Chip Select.
CRC calculation unit.
