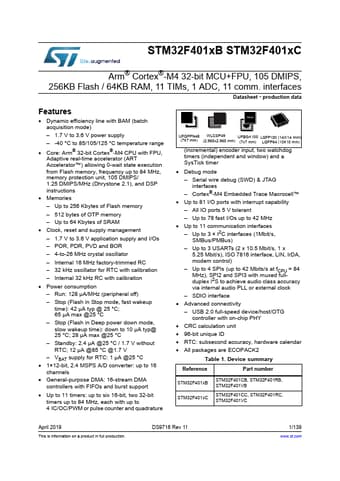

STM32F401VB, STM32F401CB - ARM Cortex-M4 32b MCU+FPU

STMicroelectronics

Datasheet Details

Part number	STM32F401VB, STM32F401CB
Manufacturer	STMicroelectronics ↗
File Size	1.89 MB
Description	ARM Cortex-M4 32b MCU+FPU
Datasheet	STM32F401CB-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM32F401VB, STM32F401CB. Please refer to the document for exact specifications by model.

. . 15 3.1 ARM® Cortex®-M4 with FPU core with embedded Flash and SRAM ...15 3.2 Adaptive real-time memory accelerator (ART Accelerator™) .

Core: ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 84 MHz, memory protection unit, 105 DMIPS/ 1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions.
Memories.
Up to 256 Kbytes of Flash memory.
Up to 64 Kbytes of SRAM.
Clock, reset and supply management.
1.7 V (PDR OFF) or 1.8 V (PDR ON) to 3.6 V.
