STM32F427VG ARM Cortex-M4 32-bit MCU+FPU

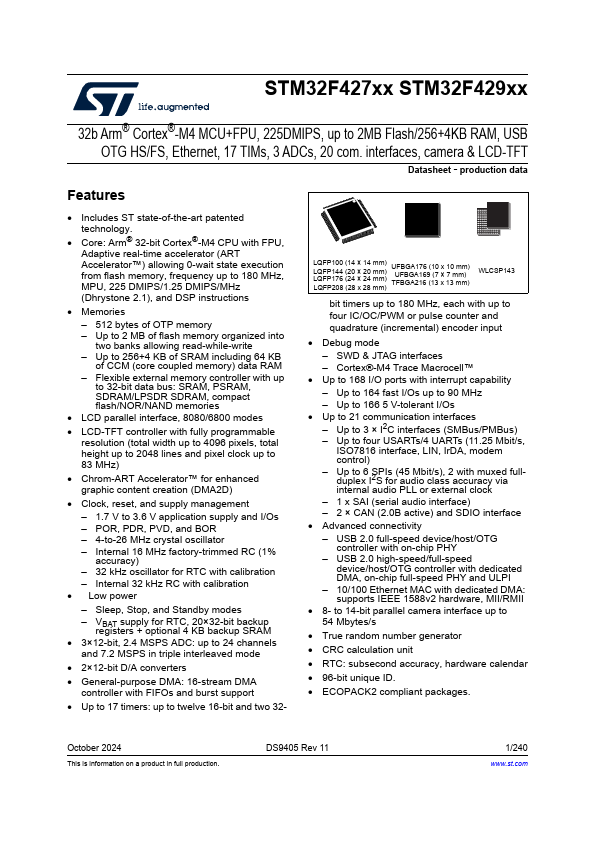

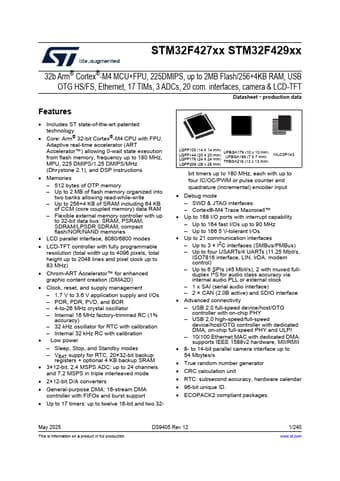

📥 Download Datasheet  Datasheet Preview Page 1

Description

STM32F427xx STM32F429xx 32b Arm® Cortex®-M4 MCU+FPU, 225DMIPS, up to 2MB Flash/256+4KB RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 20 com.interfa.

📥 Download Datasheet

Preview of STM32F427VG PDF

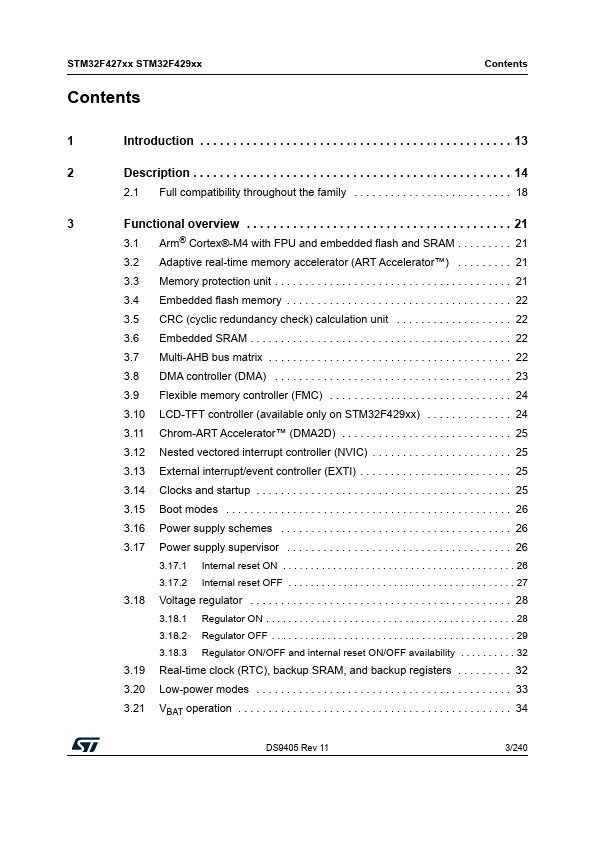

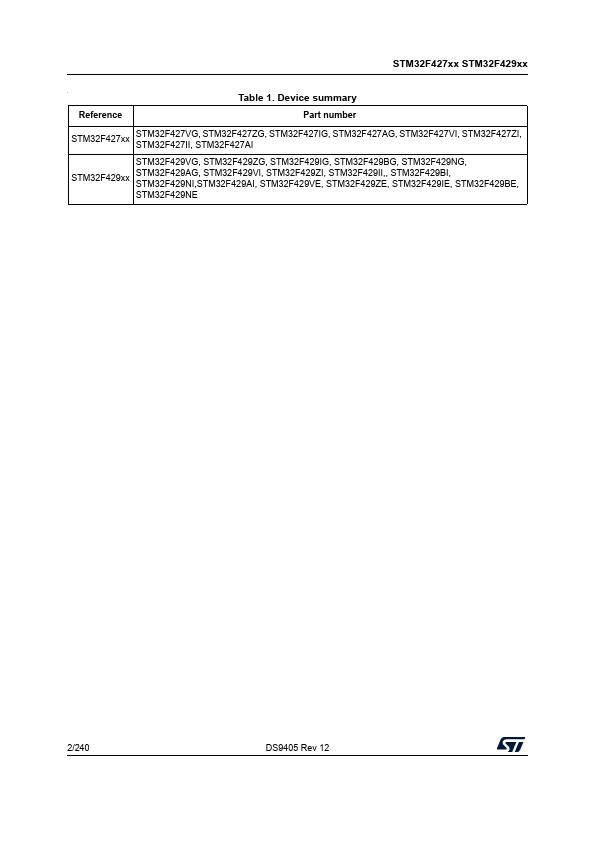

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Includes ST state-of-the-art patented technology.
* Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instr
