STM32H562IG, STM32H562AG 32-bit MCU

STMicroelectronics

Description

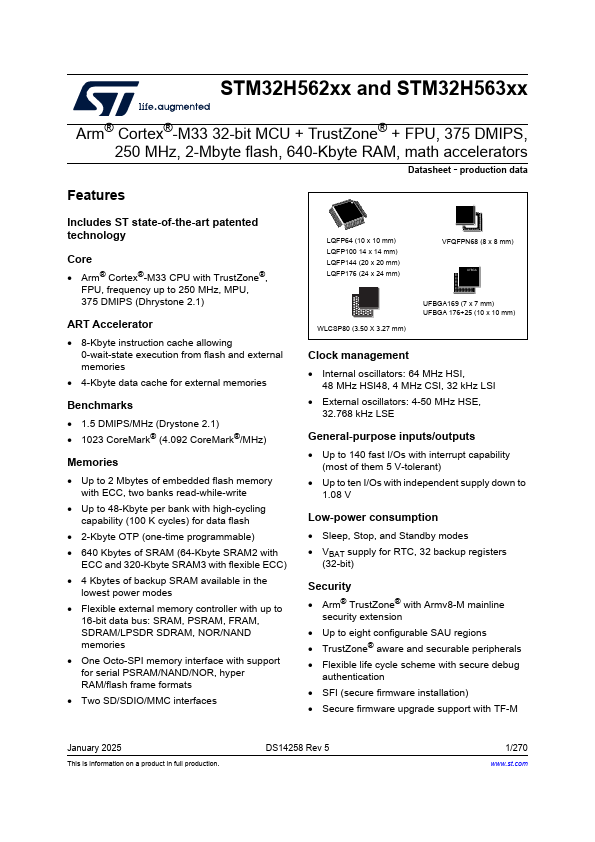

STM32H562xx and STM32H563xx Arm® Cortex®-M33 32-bit MCU + TrustZone® + FPU, 375 DMIPS, 250 MHz, 2-Mbyte flash, 640-Kbyte RAM, math accelerators Datas.

📥 Download Datasheet

STM32H562IG Datasheet Preview — This datasheet PDF includes multiple part numbers: STM32H562IG, STM32H562AG. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STM32H562IG, STM32H562AG
Manufacturer: STMicroelectronics ↗
File Size: 3.05 MB
Datasheet: STM32H562AG-STMicroelectronics.pdf
Description: 32-bit MCU
Note: This datasheet PDF includes multiple part numbers: STM32H562IG, STM32H562AG.
Please refer to the document for exact specifications by model.

Features

* Includes ST state-of-the-art patented technology Core
* Arm® Cortex®-M33 CPU with TrustZone®, FPU, frequency up to 250 MHz, MPU, 375 DMIPS (Dhrystone 2.1) ART Accelerator
* 8-Kbyte instruction cache allowing 0-wait-state execution from flash and external memories
* 4-Kbyte d
