STM32H725RG, STM32H725ZE - 32-bit 550MHz MCU

STMicroelectronics

Datasheet Details

Part number	STM32H725RG, STM32H725ZE
Manufacturer	STMicroelectronics ↗
File Size	3.55 MB
Description	32-bit 550MHz MCU
Datasheet	STM32H725ZE-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM32H725RG, STM32H725ZE. Please refer to the document for exact specifications by model.

. 22 3.1 Arm® Cortex®-M7 with FPU 22 3.2 Memory protection unit (MPU) . .

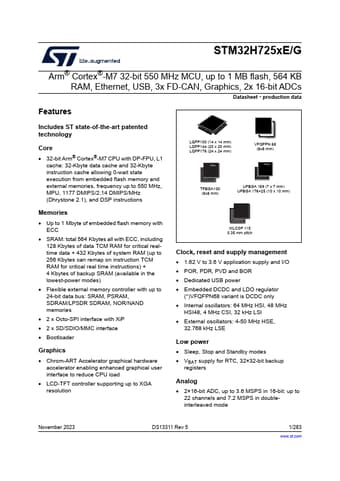

Includes ST state-of-the-art patented technology Core.
32-bit Arm® Cortex®-M7 CPU with DP-FPU, L1 cache: 32-Kbyte data cache and 32-Kbyte instruction cache allowing 0-wait state execution from embedded flash memory and external memories, frequency up to 550 MHz, MPU, 1177 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories.
Up to 1 Mbyte of embedded flash memory with ECC.
SRAM: total 564 Kbytes all with ECC, including 128 Kbytes of data TCM RAM for cri.
