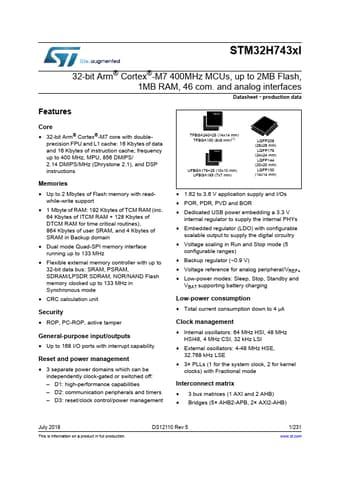

STM32H743AI, STM32H743VI - 32-bit MCUs

STMicroelectronics

Datasheet Details

Part number	STM32H743AI, STM32H743VI
Manufacturer	STMicroelectronics ↗
File Size	2.69 MB
Description	32-bit MCUs
Datasheet	STM32H743VI-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM32H743AI, STM32H743VI. Please refer to the document for exact specifications by model.

)%.
$ Core.
32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 400 MHz, MPU, 856 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories.
Up to 2 Mbytes of Flash memory with readwhile-write support.
1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), 864 Kbytes of user SRAM, and 4 Kbytes of SRAM in Backup domain.
