STM32H743AI, STM32H742VI - 32-bit Arm Cortex-M7 480MHz MCUs

Name: STM32H743AI
SKU: STM32H743AI-1385026

STMicroelectronics

The STM32H743AI by STMicroelectronics is a 32-bit Arm Cortex-M7 480MHz MCUs. Below is the official datasheet preview.

Datasheet Details

Part number	STM32H743AI, STM32H742VI
Manufacturer	STMicroelectronics
File Size	7.00 MB
Description	32-bit Arm Cortex-M7 480MHz MCUs
Datasheet	STM32H742VI-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STM32H743AI, STM32H742VI. Please refer to the document for exact specifications by model.

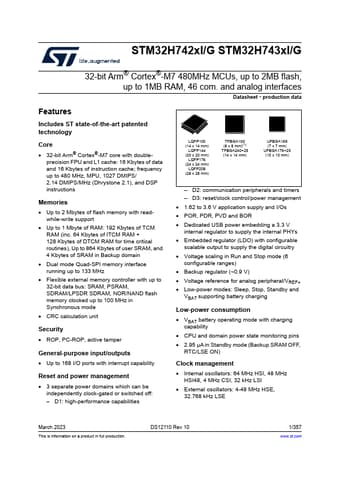

Additional preview pages of the STM32H743AI datasheet.

Includes ST state-of-the-art patented technology Core.
32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories.
Up to 2 Mbytes of flash memory with readwhile-write support.
Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), Up to.
