STM32L011G3 Access line ultra-low-power 32-bit MCU

STM32L011G3 Description

STM32L011x3 STM32L011x4 Access line ultra-low-power 32-bit MCU Arm®-based Cortex®-M0+, up to 16KB Flash, 2KB SRAM, 512B EEPROM, ADC Datasheet - produ.

STM32L011G3 Features

* Ultra-low-power platform
* 1.65 V to 3.6 V power supply
* -40 to 125 °C temperature range
* 0.23 µA Standby mode (2 wakeup pins)
* 0.29 µA Stop mode (16 wakeup lines)
* 0.54 µA Stop mode + RTC + 2 KB RAM retention
* Down to 76 µA/MHz in Run m

📥 Download Datasheet

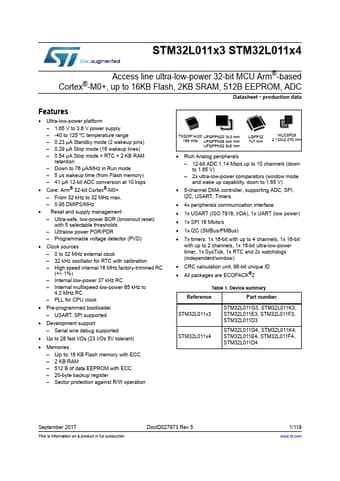

Preview of STM32L011G3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
