STM32L100R8, STM32L100C6 Ultra-low-power 32-bit MCU

STM32L100R8 Description

STM32L100C6 STM32L100R8 STM32L100RB Ultra-low-power 32-bit MCU ARM®-based Cortex®-M3, 128KB Flash, 10KB SRAM, 2KB EEPROM, LCD, USB, ADC, DAC Datasheet.

STM32L100R8 Features

* Ultra-low-power platform
* 1.8 V to 3.6 V power supply
* -40°C to 85°C temperature range
* 0.3 µA Standby mode (2 wakeup pins)
* 0.9 µA Standby mode + RTC
* 0.57 µA Stop mode (16 wakeup lines)
* 1.2 µA Stop mode + RTC
* 9 µA Low-powe

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32L100R8, STM32L100C6. Please refer to the document for exact specifications by model.

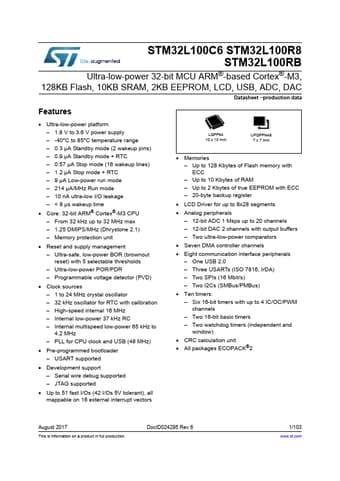

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32L100R8, STM32L100C6
Manufacturer
STMicroelectronics ↗
File Size
1.63 MB
Datasheet
STM32L100C6-STMicroelectronics.pdf
Description
Ultra-low-power 32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32L100R8, STM32L100C6.
Please refer to the document for exact specifications by model.
