STM32L151VCH6, STM32L151CCT6 Ultra-low-power 32-bit MCU

STM32L151VCH6 Description

STM32L15xCC STM32L15xRC STM32L15xUC STM32L15xVC Ultra-low-power 32-bit MCU ARM®-based Cortex®-M3, 256KB Flash, 32KB SRAM, 8KB EEPROM, LCD, USB, ADC, D.

STM32L151VCH6 Features

* Ultra-low-power platform
* 1.65 V to 3.6 V power supply
* -40 °C to 105 °C temperature range
* 0.29µA Standby mode (3 wakeup pins)
* 1.15 µA Standby mode + RTC
* 0.44 µA Stop mode (16 wakeup lines)
* 1.4 µA Stop mode + RTC
* 8.6 µA L

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32L151VCH6, STM32L151CCT6. Please refer to the document for exact specifications by model.

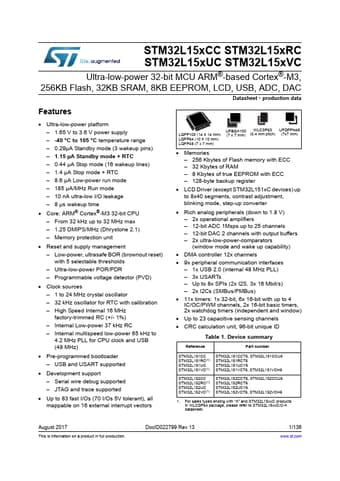

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STM32L151VCH6, STM32L151CCT6
Manufacturer
STMicroelectronics ↗
File Size
2.03 MB
Datasheet
STM32L151CCT6-STMicroelectronics.pdf
Description
Ultra-low-power 32-bit MCU
Note
This datasheet PDF includes multiple part numbers: STM32L151VCH6, STM32L151CCT6.
Please refer to the document for exact specifications by model.
