STM32L151VD-X Ultra-low-power 32-bit MCU

STM32L151VD-X Description

STM32L151VD-X STM32L152VD-X Ultra-low-power 32-bit MCU ARM®-based Cortex®-M3 with 384KB Flash, 80KB SRAM, 16KB EEPROM, LCD, USB, ADC, DAC Datasheet - .

STM32L151VD-X Features

* Ultra-low-power platform
* 1.65 V to 3.6 V power supply
* -40 °C to 105 °C temperature range
* 290 nA Standby mode (3 wakeup pins)
* 1.11 µA Standby mode + RTC
* 560 nA Stop mode (16 wakeup lines)
* 1.4 µA Stop mode + RTC
* 11 µA Low-

📥 Download Datasheet

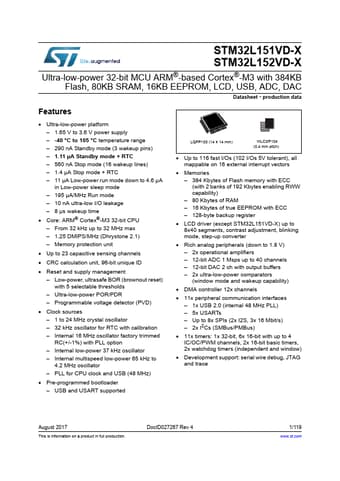

Preview of STM32L151VD-X PDF
datasheet Preview Page 2 datasheet Preview Page 3
