STM32L471RG - Ultra-low-power ARM Cortex-M4 32-bit MCU+FPU

STM32L471RG Description

STM32L471xx Ultra-low-power Arm® Cortex®-M4 32-bit MCU+FPU, 100DMIPS, up to 1MB Flash, 128 KB SRAM, analog, audio Datasheet - production data Featur.

STM32L471RG Features

* Ultra-low-power with FlexPowerControl
* 1.71 V to 3.6 V power supply
* -40 °C to 85/105/125 °C temperature range
* 300 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
* 30 nA Shutdown mode (5 wakeup pins)
* 120 nA Standby mode (5 wakeu

📥 Download Datasheet

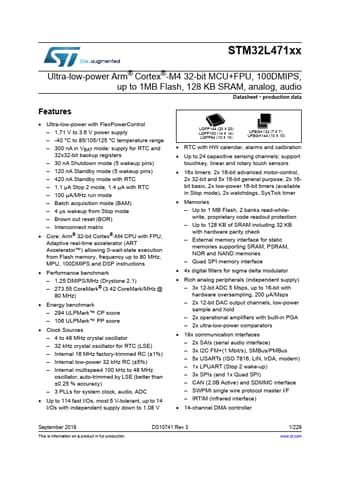

Preview of STM32L471RG PDF
datasheet Preview Page 2 datasheet Preview Page 3
