STM32L486JG Ultra-low-power Arm Cortex-M4 32-bit MCU+FPU

STM32L486JG Description

STM32L486xx Ultra-low-power Arm® Cortex®-M4 32-bit MCU+FPU, 100DMIPS, 1MB flash, 128KB SRAM, USB OTG FS, LCD, ext.SMPS, AES Datasheet - production d.

STM32L486JG Features

* Includes ST state-of-the-art patented technology
* Ultra-low-power with FlexPowerControl
* 1.71 V to 3.6 V power supply
* -40 °C to 85/105/125 °C temperature range
* 300 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
* 30 nA Shutdown mode (5 w

📥 Download Datasheet

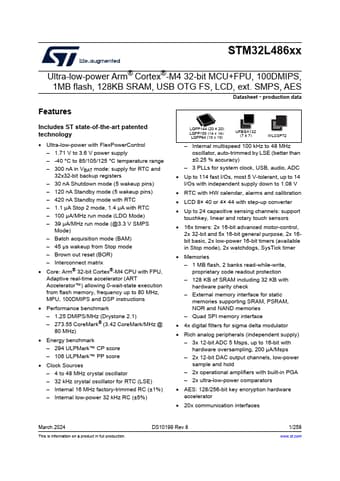

Preview of STM32L486JG PDF
datasheet Preview Page 2 datasheet Preview Page 3
