STM32L4R5VI Ultra-low-power Arm Cortex-M4 32-bit MCU+FPU

STM32L4R5VI Description

STM32L4R5xx STM32L4R7xx STM32L4R9xx Ultra-low-power Arm® Cortex®-M4 32-bit MCU+FPU, 150DMIPS, up to 2MB Flash, 640KB SRAM, LCD-TFT & MIPI DSI, ext.SM.

STM32L4R5VI Features

* Ultra-low-power with FlexPowerControl
* 1.71 V to 3.6 V power supply
* -40 °C to 85/125 °C temperature range
* Batch acquisition mode (BAM)
* 305 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
* 33 nA Shutdown mode (5 wakeup pins)

📥 Download Datasheet

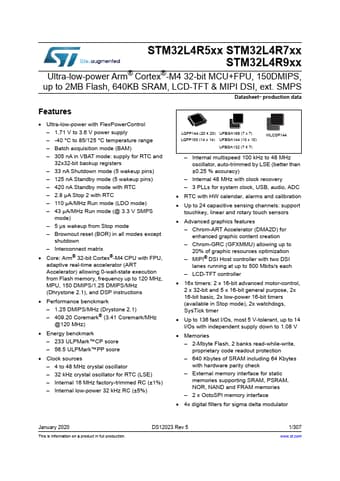

Preview of STM32L4R5VI PDF
datasheet Preview Page 2 datasheet Preview Page 3
