STM32L4R9AG Datasheet

Manufacturer: STMicroelectronics

This datasheet includes multiple variants, all published together in a single manufacturer document.

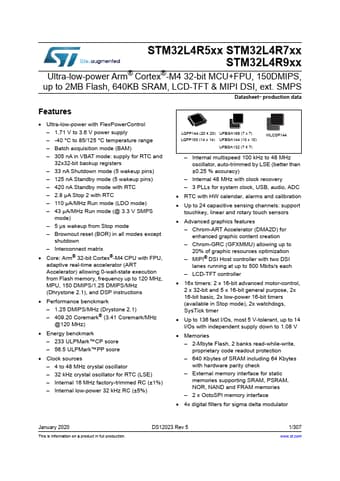

STM32L4R9AG datasheet preview

Datasheet Details

Part number	STM32L4R9AG
Datasheet	STM32L4R9AG STM32L4R5VI Datasheet (PDF)
File Size	5.84 MB
Manufacturer	STMicroelectronics
Description	Ultra-low-power Arm Cortex-M4 32-bit MCU+FPU

STM32L4R9AG Overview

SMPS Datasheet- production data.

STM32L4R9AG Key Features

Ultra-low-power with FlexPowerControl
1.71 V to 3.6 V power supply
40 °C to 85/125 °C temperature range
Batch acquisition mode (BAM)
305 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
33 nA Shutdown mode (5 wakeup pins)
125 nA Standby mode (5 wakeup pins)
420 nA Standby mode with RTC
2.8 μA Stop 2 with RTC
110 μA/MHz Run mode (LDO mode)
