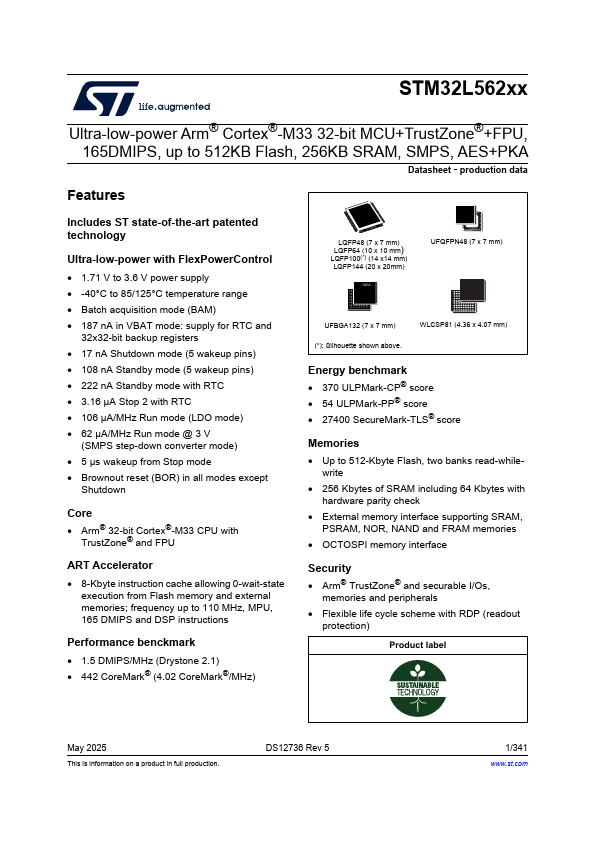

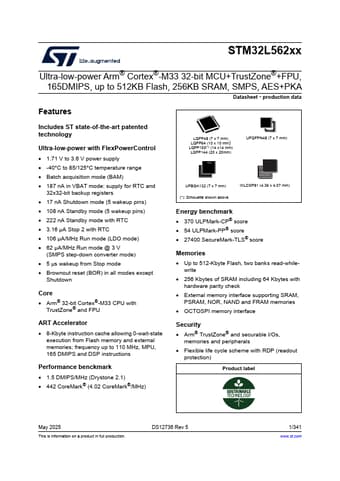

STM32L562CE - Ultra-low-power Arm Cortex-M33 32-bit MCU+TrustZone+FPU

STMicroelectronics

Datasheet Details

Part number	STM32L562CE
Manufacturer	STMicroelectronics ↗
File Size	3.42 MB
Description	Ultra-low-power Arm Cortex-M33 32-bit MCU+TrustZone+FPU
Datasheet	STM32L562CE-STMicroelectronics.pdf

. 22 3.1 Arm® Cortex®-M33 c

Includes ST state-of-the-art patented technology Ultra-low-power with FlexPowerControl.
1.71 V to 3.6 V power supply.
-40°C to 85/125°C temperature range.
Batch acquisition mode (BAM).
187 nA in VBAT mode: supply for RTC and 32x32-bit backup registers.
17 nA Shutdown mode (5 wakeup pins).
108 nA Standby mode (5 wakeup pins).
222 nA Standby mode with RTC.
3.16 μA Stop 2 with RTC.
106 μA/MHz Run mode (LDO mode).
