STM32MP157D, STM32MP157A Arm dual Cortex-A7 650 MHz + Cortex-M4 MPU

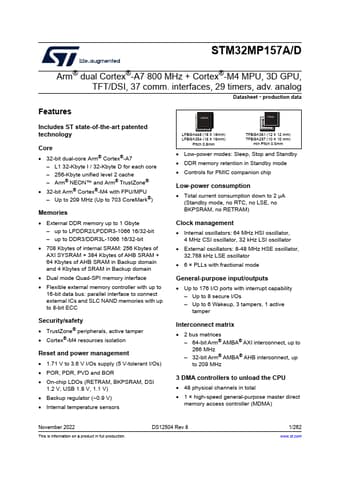

📥 Download Datasheet Datasheet Preview Page 1

Description

STM32MP157A/D Arm® dual Cortex®-A7 800 MHz + Cortex®-M4 MPU, 3D GPU, TFT/DSI, 37 comm.interfaces, 29 timers, adv.analog Datasheet - production data.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STM32MP157D, STM32MP157A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STM32MP157D, STM32MP157A
Manufacturer
STMicroelectronics ↗
File Size
3.41 MB
Datasheet
STM32MP157A-STMicroelectronics.pdf
Description
Arm dual Cortex-A7 650 MHz + Cortex-M4 MPU
Note
This datasheet PDF includes multiple part numbers: STM32MP157D, STM32MP157A.
Please refer to the document for exact specifications by model.

Features

* Includes ST state-of-the-art patented technology Core
* 32-bit dual-core Arm® Cortex®-A7
* L1 32-Kbyte I / 32-Kbyte D for each core
* 256-Kbyte unified level 2 cache
* Arm® NEON™ and Arm® TrustZone®
* 32-bit Arm® Cortex®-M4 with FPU/MPU
* Up to 209 MHz
