STM32W108HB - IEEE 802.15.4 wireless system-on-chip

Name: STM32W108HB
SKU: STM32W108HB-777870

STMicroelectronics

The STM32W108HB by STMicroelectronics is a IEEE 802.15.4 wireless system-on-chip. Below is the official datasheet preview.

Datasheet Details

Part number	STM32W108HB
Manufacturer	STMicroelectronics
File Size	2.35 MB
Description	IEEE 802.15.4 wireless system-on-chip
Datasheet	STM32W108HB-STMicroelectronics.pdf

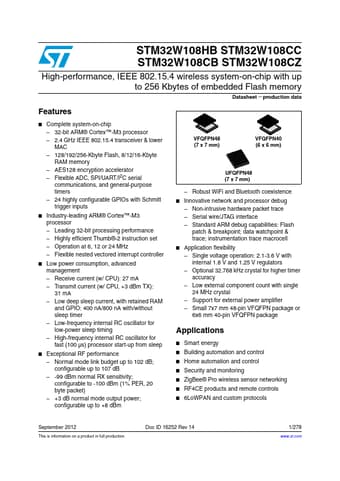

Additional preview pages of the STM32W108HB datasheet.

. . . . .

Complete system-on-chip.
32-bit ARM® Cortex™-M3 processor.
2.4 GHz IEEE 802.15.4 transceiver & lower MAC.
128-Kbyte Flash, 8-Kbyte RAM memory.
AES128 encryption accelerator.
Flexible ADC, SPI/UART/I2C serial communications, and general-purpose timers.
24 highly configurable GPIOs with Schmitt trigger inputs Industry-leading ARM® Cortex™-M3 processor.
Leading 32-bit processing performance.
Highly efficient Thumb®-2 ins.
