STM32WB1MMC - Bluetooth Low Energy 5.4 module

STMicroelectronics

STM32WB1MMC Datasheet Preview — Preview of STM32WB1MMC PDF

Datasheet Details

Part number	STM32WB1MMC
Manufacturer	STMicroelectronics ↗
File Size	1.79 MB
Description	Bluetooth Low Energy 5.4 module
Datasheet	STM32WB1MMC-STMicroelectronics.pdf

STM32WB1MMC Product details

Description

2 Description The STM32WB1MMC is an ultra-low power, small form factor, certified 2.4 GHz wireless module, supporting Bluetooth® Low Energy 5.4. Based on the STM32WB15CCY wireless microcontroller, it provides best-in-class RF performance thanks to its good receiver sensitivity and a high output power signal.Its low power

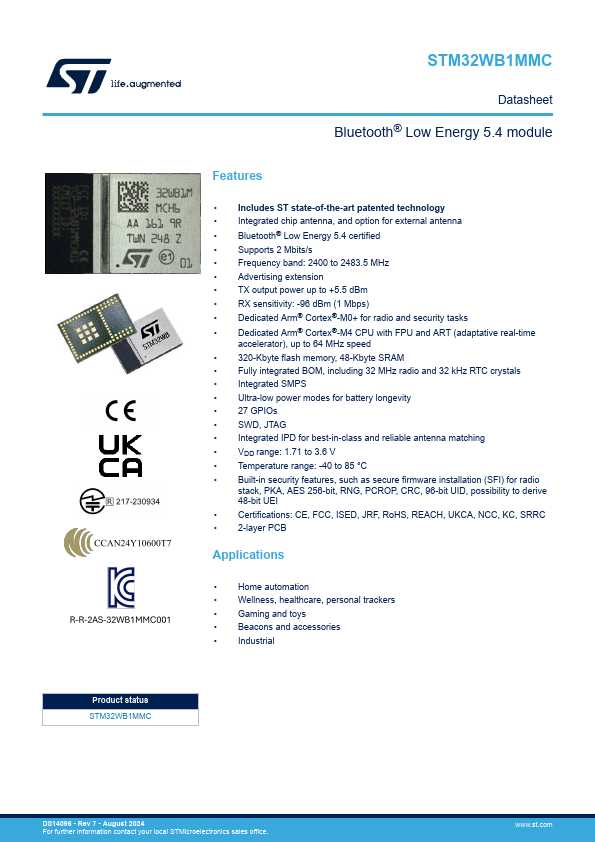

Features

Includes ST state-of-the-art patented technology.
Integrated chip antenna, and option for external antenna.
Bluetooth® Low Energy 5.4 certified.
Supports 2 Mbits/s.
Frequency band: 2400 to 2483.5 MHz.
Advertising extension.
TX output power up to +5.5 dBm.
RX sensitivity: -96 dBm (1 Mbps).
Dedicated Arm® Cortex®-M0+ for radio and security tasks.
Dedicated Arm® Cortex®-M4 CPU with FPU and ART (adap.
