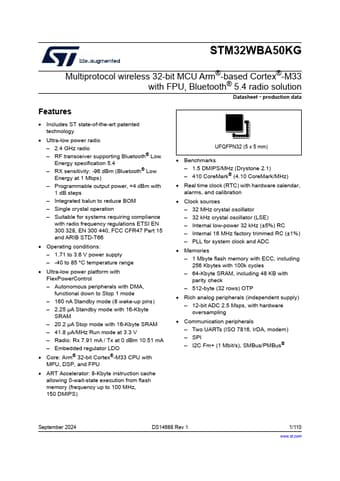

STM32WBA50KG - Multiprotocol wireless 32-bit MCU

STMicroelectronics

Datasheet Details

Part number	STM32WBA50KG
Manufacturer	STMicroelectronics ↗
File Size	1.24 MB
Description	Multiprotocol wireless 32-bit MCU
Datasheet	STM32WBA50KG-STMicroelectronics.pdf

. 14 3.1 Arm Cortex-M33 core with MPU, DSP, and FPU . 14 3.3 Memory protection unit .

Includes ST state-of-the-art patented technology.
Ultra-low power radio.
2.4 GHz radio.
RF transceiver supporting Bluetooth® Low Energy specification 5.4.
RX sensitivity: -96 dBm (Bluetooth® Low Energy at 1 Mbps).
Programmable output power, +4 dBm with 1 dB steps.
Integrated balun to reduce BOM.
Single crystal operation.
Suitable for systems requiring compliance with radio frequency regulations ETSI EN 300 328, EN.
